NATURAL CONVECTION – REGULATION and ACCESSORIES

Regulation of the heating medium flow forms a central role in the correct control of convector heating output. Correct selection of regulation elements guarantees a comfortable ambient temperature and contributes to heating cost minimalization.

KORAFLEX FKO, FKT, FKB, FKP
KORALINE LKO, LKW, LKB, LKC, LKS, LKM, LDO, LDP
KORAWALL WK
KORASPACE
KORABASE

Technical data Demand

Heating
Natural convection

ACCESSORIES

Regulation is designed for all model lines with natural convection:
Outside temperature varies continuously during the heating period. Regulation elements are installed to the heating system to meet your desired ambient temperature and to eliminate the negative impact of outside temperature changes. Thanks to well-designed regulations the KORAFLEX, KORALINE, KORAWALL, KORASPACE and KORABASE model lines achieve optimal heating efficiency and considerable financial savings.

Lockshield

optional accessory :

KORAFLEX FK, KORALINE LK, LD,
KORAWALL WK, KORABASE
KORASPACE

• straight or angle
• size ½" G
• nickel-plated brass
• max. operating pressure: PN 10
• max. operating temperature: 120 °C
• nickel-plated brass body

• order code:

straight lockshield: REG-LS

corner lockshield: REG-LA

Preset values	1	2	3	4	5	6
Kv (Δt = 2K)	0.10	0.20	0.30	0.40	0.50	0.60
Kvs	0.10	0.20	0.30	0.40	0.57	0.80

Kv flow coefficient (m3/h); Kvs maximum flow (m3/h); Δt = 2K valve proportional band (K)

Thermostatic valve

optional accessory :
KORAFLEX FK, KORALINE LK, LD,
KORAWALL WK, KORABASE
KORASPACE

• straight, angle or axial
• double regulating valve with preset Kv value
• DN 15; size ½" G
• thermostat head connection thread M 30 × 1.5
• max. operating pressure: PN 10
• max. operating temperature: 120 °C
• nickel-plated brass body

• order code:

straight thermostatic valve: REG- TVS

angle thermostatic valve: REG-TVA
axial thermostatic valve: REG-AVP

Preset values	1	2	3	4	5	6	7	8	9
Turns	1 ¼	1 ½	1 ¾	2	2 ½	3	3 ½	4	F.O.
Kv	0.14	0.2	0.31	0.43	0.6	0.79	1	1.2	1.35

Kv flow coefficient (m3/h); F.O. fully open

Axial thermostatic valve

Standard delivery contents for:

KORALINE LK, LD, Axiální termostatický ventil

• maximum operating pressure: PN 10
• maximum operating temperature: 120 °C
• connection type: M 30 × 1.5
• connection – pipes: 1/2"
• connection – body: 1/2" – O-ring seal
• Kvs value: 1,08 k
• Kvs value: 1,08

• order code: REG-AVP

The axial thermostatic valve is designed for KORALINE products. The valve is included as an accessory with all KORALINE bench heaters.

Extension nipple

Standard contents for units over 150 mm in height

KORALINE LK, LD,

• length of extension 42.5 mm
• used to align the height between the inlet and outlet of the fitting
• heat exchanger: brass
• connecting thread: inner G 1/2" Prodlužovací kus

• O-ring seal

Brass elbow

optional accessory :
KORAFLEX FK, KORABASE
KORASPACE

• ½"×½" 90° without rim
• order code: REG-E90

Flexible connecting hose

optional accessory :
KORAFLEX FK, KORABASE
KORASPACE Připojovací flexi hadice

• stainless steel welded hose
• lengths 10, 12, 20, 30 cm
• end fitting with internal thread G½ or G ¾" (flat seal)
• end fitting with external thread R½ (thread seal)
• max. temperature 180 °C
• PN 10

• order code: G ½"	• order code: G ¾"
(10 cm): REG-N10 (12 cm): REG-N12 (20 cm): REG-N20 (30 cm): REG-N30	(20 cm): REG-N20-34 (30 cm): REG-N30-34

DC power supply 60 W, 100 W

optional accessory
KORAFLEX FK, KORALINE LK, LD,
KORAWALL WK, KORABASE,KORASPACE

• switch-mode DC power supply
• silent operation, high efficiency
• DIN rail assembly
• IP 20

• order code: REG-PS60, REG-PS100

The size of the power supply is designed according to the sum of the power consumption of the thermoelectric actuators for one voltage source. Count 2W for one thermoelectric actuator. We recommend the output of the power supply is at least 20% more than the resulting sum input of the actuators for this power supply.

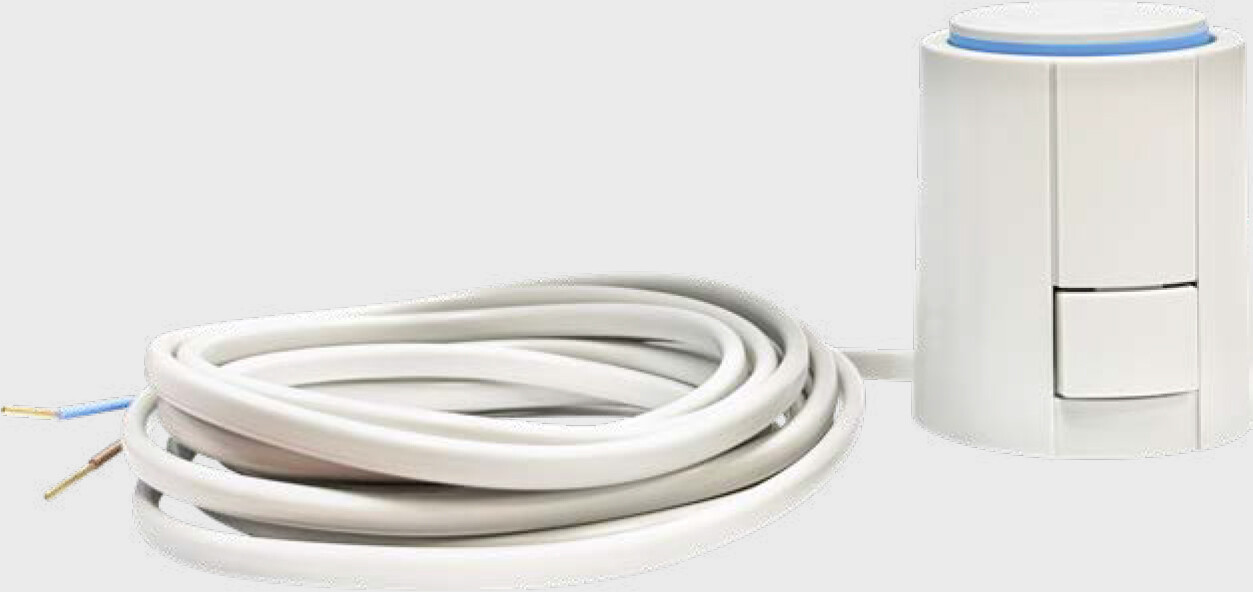

Thermoelectric actuator optional accessory *KORAFLEX FK, KORALINE LK, LD,* *KORAWALL WK, KORABASE* *KORASPACE* • IP rating IP 44 • reset time 4 min • unit height 65 mm • M 30×1.5 thread • cable length 1, 3 or 5 m • closed without voltage
TEP 230 KORAFLEX FK, KORALINE LK, LD, KORAWALL WK, KORABASE KORASPACE • supply voltage: 230 V AC • power consumption <2 W • order code: REG-TEP230-100 (TEP 230 cable 1 m) • order code: REG-TEP230-300 (TEP 230 cable 3 m) • order code: REG-TEP230-500 (TEP 230 cable 5 m)	TEP 24 KORAFLEX FK, KORALINE LK, LD, KORAWALL WK, KORABASE KORASPACE • supply voltage: 24 V DC/AC • power consumption <2 W • order code: REG-TEP24-100 (TEP 24 cable 1 m) • order code: REG-TEP24-300 (TEP 24 cable 3 m) • order code: REG-TEP24-500 (TEP 24 cable 5 m)

In order to set and regulate the required air temperature in heated rooms, trench heaters must be fitted with thermostatic heads with incorporated control and immersion sensors or thermoelectric actuators.

SIEMENS RAA21 room thermostat optional accessory *KORAFLEX FK, KORALINE LK, LD,* KORAWALL WK, KORABASE *KORASPACE* • for heating • 2-point ON/OFF control • switching voltage 24 V DC up to 230 V AC • gas-filled metal membrane • required temperature setpoint is selected manually with the setting knob on the front of the thermostat • the setpoint setting range can be mechanically limited by means of setpoint limiters under the unit cover • IP 30 • dimensions (h×w×d) 97×96×35.3 mm • order code: REG-RAA21		SIEMENS RDE 100.1 room thermostat optional accessory *KORAFLEX FK, KORALINE LK, LD,* *KORAWALL WK, KORABASE* *KORASPACE* • for heating • 2-point ON/OFF • switching voltage: 24 V DC and 230 V AC • Comfort, Economy, Auto timer and Protection mode • adjustable commissioning and control parameters • 7-day time program • battery powered: 3V DC (2 x 1.5 V DC) • IP 30 • dimensions (h×w×d) 127×85×21.5 mm • order code: REG-RDE100.1
Thermostatic head with incorporated control and immersion remote sensor optional accessory *KORAFLEX FK, KORALINE LK, LD,* *KORAWALL WK, KORABASE* *KORASPACE* • control range 6.5–28 °C •installation of the thermostatic head into the wall • capillary tube length: 5 m • hysteresis: ≤0.6 °C • order code: REG-TH5		CLASSIC thermostatic head optional accessory *KORALINE LK, LD,* *KORAWALL WK, KORABASE* *KORASPACE* • control range 1–28 °C • hysteresis: 0.4 K • RAL 9016 white • connection type: M 30 × 1.5 • order code: REG-THC
DESIGN thermostatic head optional accessory *KORALINE LK, LD,* *KORAWALL WK, KORABASE* *KORASPACE* • attractive design • matt finish • control range 1–28 °C • hysteresis: 0.25 K • connection type: M 30 × 1.5 • order code: REG-THD		Thermostatic head Thera 6 optional accessory *KORALINE LK, LD,* *KORAWALL WK, KORABASE* *KORASPACE* • control range 1–28 °C • hysteresis: 0.4 K • RAL 9016 white • connection type: M 30 × 1.5 • order code: REG-THC6
