KORALINE Optimal LDO with bench top

standard design with wooden top

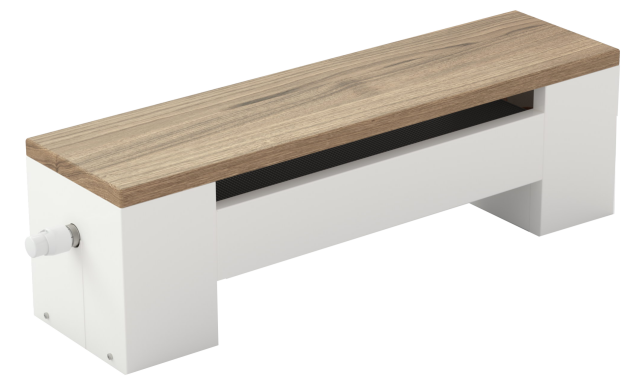

KORALINE Optimal LDO free-standing convectors with wooden bench tops are exceptional products owing to the timeless design of the casing and the option to choose from several different wooden bench tops. This range combines design with functionality. Convectors with
a bench top are suitable for heating interiors, and also for sitting and relaxing. With a proven smart combination of design, output, low surface temperature casing and other features, they are ideal for placement in halls, corridors and conservatories, as well as office buildings and public buildings. Convectors with wooden bench tops are also ideal wherever there are areas with large windows.

Technical data Demand
Úvod
  • Heating
  • Natural convection
  • Higher performance
Unit height inc. bench top  [mm] 300, 450 mm
Unit width inc. bench top  [mm] 265, 315 mm
Unit length inc. bench top  [mm] 1 000, 1 200, 1 400, 1 600, 1 800, 2 000 mm
Output [W] from 721 to 3 525 W
Max. operating pressure [MPa] 1,2 MPa
Max. operating temperature [°C] 90 °C
Surface temperature  [°C] 40 °C According to inlet water temperature
Connecting thread inner G 1/2"
Connection method lower (recommended), side
Bench tops beech, oak, American walnut

Tepelné výkony [W] při t1/t2/ti = při 75/65/20 ˚C (Δt=50) a 55/45/20 ˚C (Δt=30)/EN 442

ΔT = 50 °C Length [mm] Temperature exponent
Width
[mm]		 Výška
[mm]		 1000 1200 1400 1600 1800 2000
265 300 721 934 1147 1360 1573 1786 1,429
315 450 1483 1891 2300 2708 3117 3525 1,3864

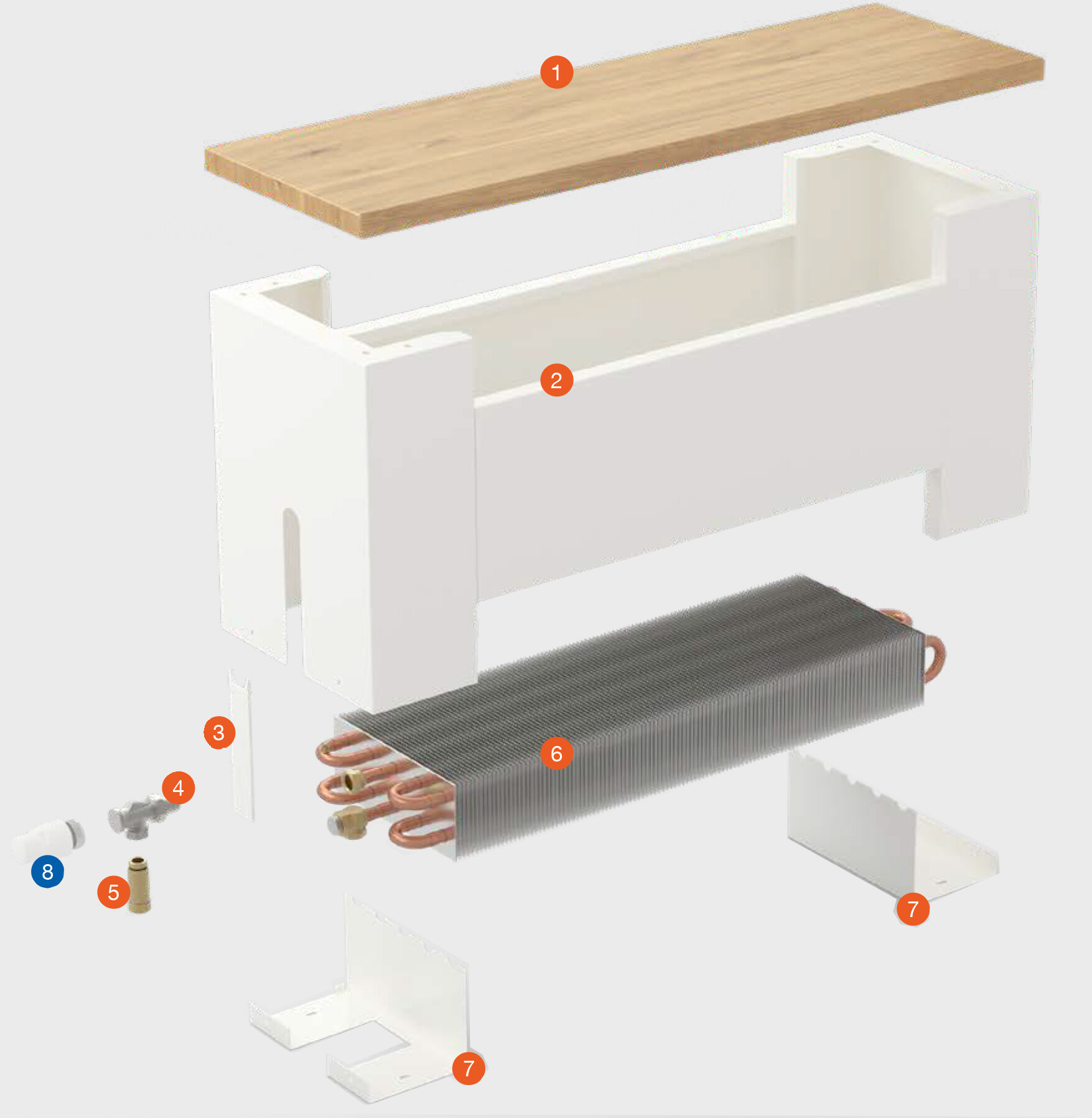

 Convector composition KORALINE Optimal LDO

LD composition
Standard contents
1 wooden bench top according to preference – oak, beech, American walnut
2galvanized steel RAL 9016 white casing
3 magnetic side cover in casing colour
4 axial thermostatic valve, M 30 × 15 thread
5 extension nipple
6 Al/Cu low water volume heat exchanger, bleed valve, uniquely shaped fins for max. heat output
7 floor-level brackets assembly
 *instructions and durable packaging


Optional accessories
8 thermostatic head

*further RAL lacquers for casings available
*black RAL 9005 and further RAL lacquers for Al/Cu heat exchangers available
*elbow or straight thermostatic valve
* elbow or straight lockshield
*TEP 230 or TEP 24 thermoelectric actuator
*SIEMENS RAA21 or RDE 100.1 room thermostat
*QAA32 room temperature sensor
*thermostatic head with incorporated control and immersion remote sensor
KORALINE with bench top Optimal LDO

HEIGHT 300 mm
WIDTH  265 mm



300-265

HEIGHT  450 mm
WIDTH   315 mm

450-315
BENCH TOPS

BENCH TOPS   - Wooden bench tops are made of purely natural materials and treated with an internationally certified oil finish. To maintain their properties and stability, we recommend that bench tops are regularly treated with a similar product.

Beech

buk

Oak

dub

American walnut

ořech

ASSEMBLY – FREE-STANDING CONVECTORS

Installation instructions
We recommend attaching the brackets (see dimensions in the installation instructions) to the floor. Place the heat exchanger on them and connect it. Fit the casing with the bench top and fasten it. Please refer to the installation instructions for more detailed information. For correct operation and maximum output, the heating elements must be filled with a heating medium and properly vented after installation. After being mounted on the convector, the wooden bench top is secured against unwanted movement by lateral fixing.

For more detailed guidance and installation instructions for the given types, please refer to the installation instructions for KORALINE with wooden bench tops. Bench tops are made of natural materials and therefore slight variations in colour cannot be excluded. The supplier cannot fully guarantee the colours shown nor accept claims due to any variations in colour.

MOUNTING
LD_montáž

The minimum distance for KORALINE LDO and LDP free-standing convectors from the wall is 100 mm.

LOWER CONNECTIONS

HEIGHT 300 mm
WIDTH   265 mm

Spodní připojení LD 300_265


HEIGHT 450 mm
WIDTH   315 mm

Spodní připojení LD 450_315

KORALINE LD montáž

KORALINE free-standing convectors over 1 600 mm in length are supplied with a central leg as standard.

ORDERING CODES

Example of ordering code: LDO-140/30/26-V1SB1-10

KORALINE LDO (Optimal) free-standing convector, Length 140 cm, Height 30 cm, Width 26.5 cm, Steel casing white RAL 9016, non-lacquered Al/Cu heat exchanger, Beech bench top.

KORALINE
With
bench

Type
Optimal

Length/Height/Width (cm)

Convector
connection
Heat
exchanger
colour
Material
used
Bench type
Bench
type

Casing
colour
L D O - 140/30/26 - V 1 S B 1 - 10












counter-flow
elox silver
steel
B - beech
D - oak
O - American walnut

solid wood


10 RAL 9016
** Colour chart Licon
99 other RAL colour
