Grilles - Thin

Thin grilles are manufactured from eloxed aluminium and are designed solely for Thin trench heaters. They are only available as a roll-up model. The standard finish for aluminium grilles is silver elox; in addition, dark and light bronze elox are available. Other RAL colour chart colours are available as powder coating. Decorative Thin frame covers may be chosen using the same colour scheme as grilles, and are supplied as a component of trench heaters. Due to space limitations, F-frames are not available for Thin grilles.

Technical data Demand
id 455739

The standard finish for aluminium grilles is silver elox; in addition, dark and light bronze elox are available. Other RAL colour chart colours are available as powder coating.  Decorative Thin frame covers may be chosen using the same colour scheme as grilles, and are supplied as a component of trench heaters. Due to space limitations, F-frames are not available for Thin grilles.

Thin mrizky - profilMeasurements shown in mm.

Roll-up model
Thin mrizky - rolovaci provedeni_1

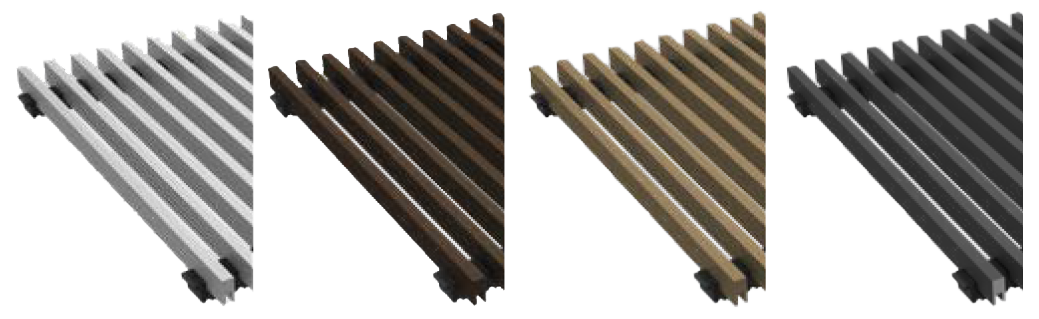

 aluminium silver             aluminium dark bronze        aluminium light bronze        black elox - NEWS
PM-Thin
info  The grille can be rolled for easier handling. F-frame can never be fitted with Thin grilles.
Measurements
Code PM-xx/14 PM-xx/16 PM-xx/20 PM-xx/26 PM-xx/32 PM-xx/34 PM-xx/40
Width - nett  [mm] 128 148 188 248 308 328 388
Tolerance +0–1.5 mm. Code width is derived from trench heater width.
Grille airflow
alu wood steel  stainless Thin  Cross Robust
63% 55% 60% 60% 63% 58% 35%
Load bearing capacity

PM-graf

In load-bearing capacity testing, grille slats are placed on two supports and weighed down in the center.
For wooden slats, values are given up to the fracture point of the first fibre. Metal slats are measured up to the point of irreversible deflection.

Decorative U-shaped and F-shaped frames are available as standard in aluminium with silver, black, dark bronze or light bronze elox finishes. U-frame, Thin and Cross frames are also available in black elox. Frames may also be lacquered (powder-coated) using colours from the RAL colour chart. Frames are in every case supplied as a component of trench heaters, and the type required must be specified when ordering in the Order Code. Where trench heaters are finished with a hem, the hem is of the same material as the casing.

Thin frame

Thin-rámeček

ORDER CODE

Example of order code: PM-100/26-T1R0

Cover grille, length 100 cm, width 26 cm, Thin aluminium elox finish, silver elox colour, roll-up type, for trench heater without special modifications. Grille measurement given in the order code corresponds with the measurement of the respective trench heater. Net dimension of the grille is available upon request.

Floor
Grille

Length/Width (cm)

Grille material
Grille colour
Grille type
Grille ending type
P
M
-
100/26
-
T
1
R
0






T aluminium Thin


1 silver elox
2 dark bronze elox
3 light bronze elox
5 black elox
9 other RAL colour
R roll-up

0 grille for single trench heater
1 trench heater – right face lowered
2 trench heater – left face lowered
3 trench heater – both faces lowered
